Build Size: 100*100*80mm
Laser Type: 500W
Materials：Titanium alloy, cobalt-chromium alloy stainless steel

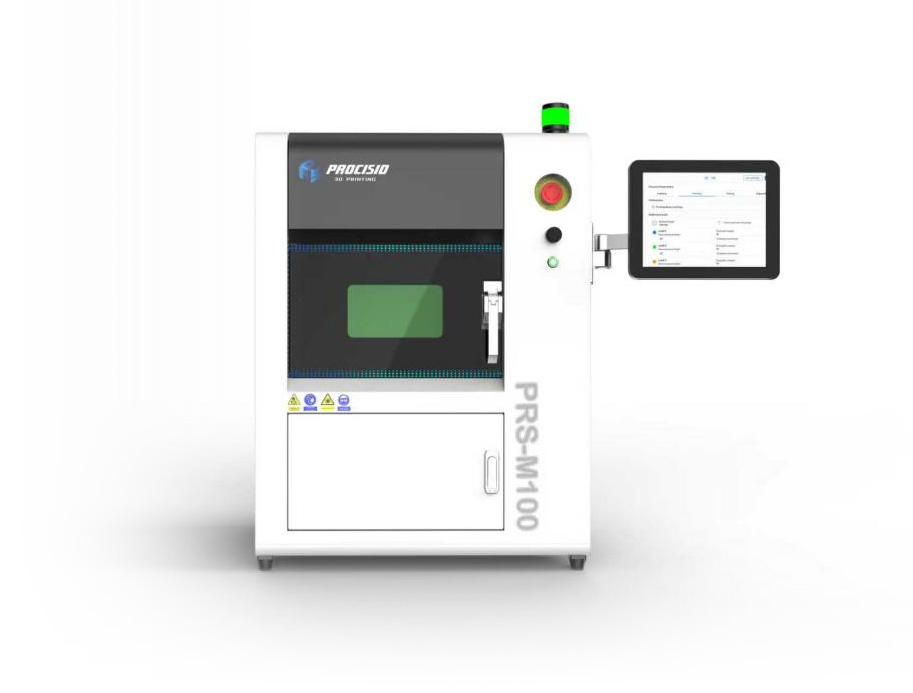

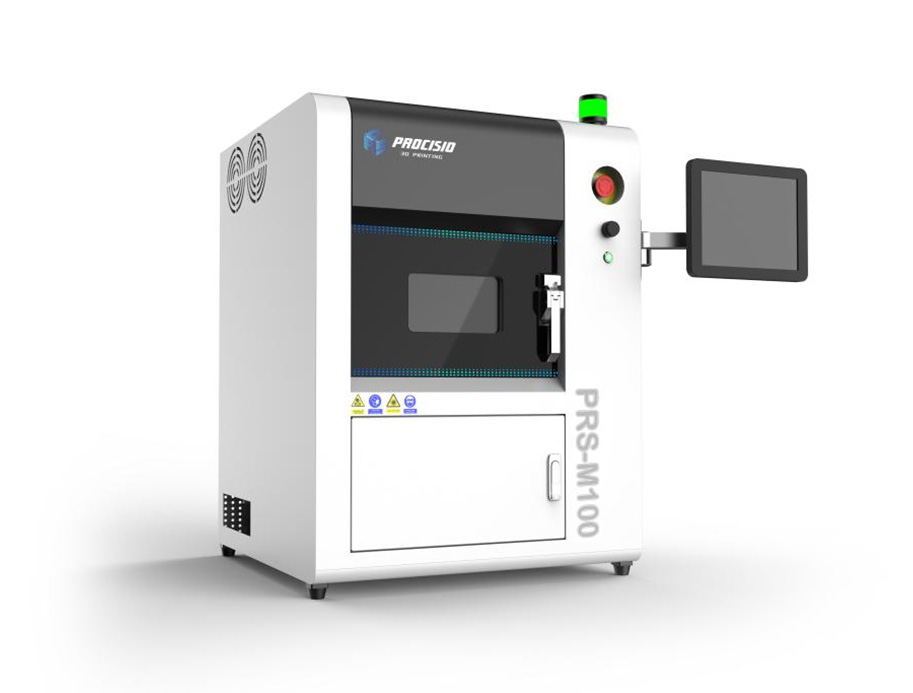

With a footprint of only 0.35 ㎡, the machine saves over 60% space compared with traditional equipment. It can be directly placed on workbenches in dental clinics and laboratories, with no need for a separate production workshop, making it perfectly suitable for small-scale processing sites.
Designed with a parallel powder feeding mechanism and flexible blade system, it maintains flawless powder uniformity in the compact square build volume, prevents powder piling and leakage, and reliably underpins consistent ultra-high precision forming.
Pre-calibrated for core dental materials — CoCr alloy, titanium alloy, and pure titanium — with optimized process parameters.Stable printing is achieved immediately upon setup, no repeated adjustment needed.Eliminates material-process matching barriers, reducing both setup time and material waste.
| Item | Specification |
| Dimension | 670*600* 880mm |
| Build volume | 100*100*80mm |
| Scanning speed | 7-12m/s |
| Light source | 500W |
| Laser Source | Single |
| Layer Thickness | 20~60μm |
| Applicable material | Titanium alloy, cobalt-chromium alloy stainless steel |
| Chamber oxygen level | ≤100ppm |
| Protective gas | Nitrogen/Argon |
| Data format | STL or other Convertible File |
| Software | BP+PRSControl software |
| Voltage | 220v.50HZ.1P.1.5KW |
| Weight | 165kg |
| Cooling Type | Water-Cooled |

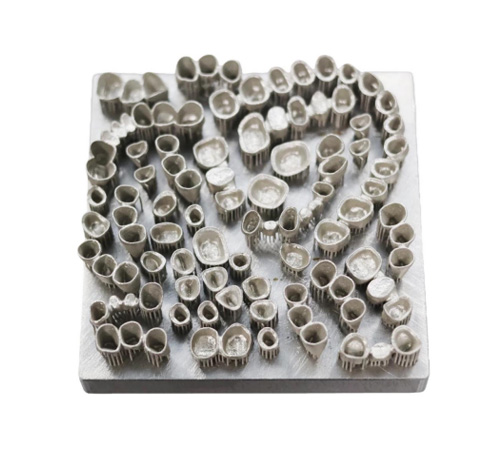

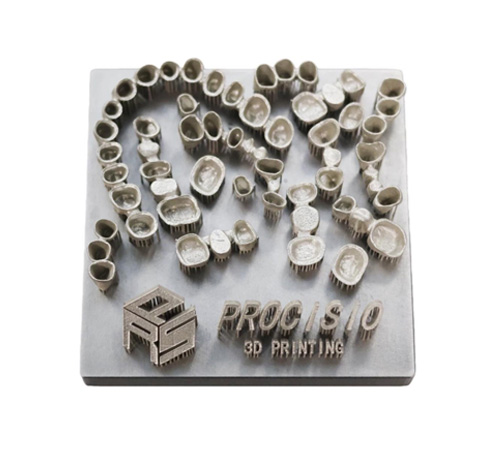

Dental crown
Dental crown

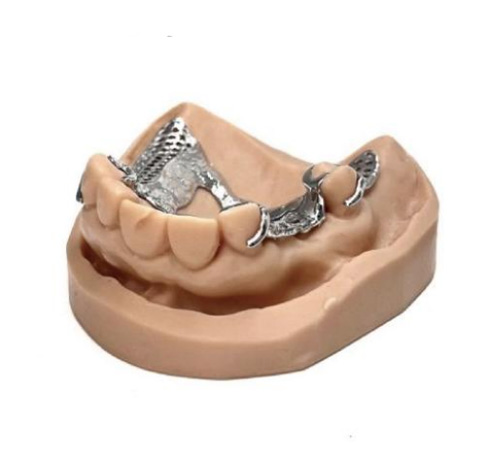

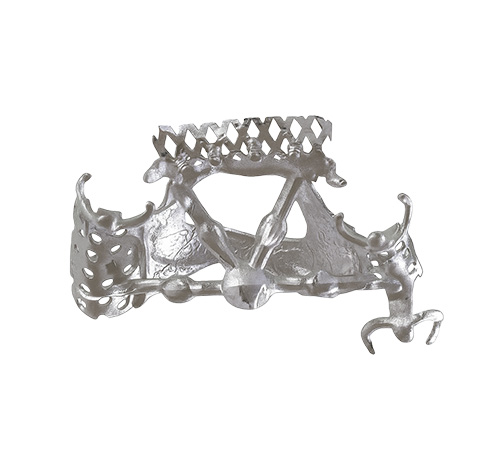

Denture framework、RPE
Dental crown

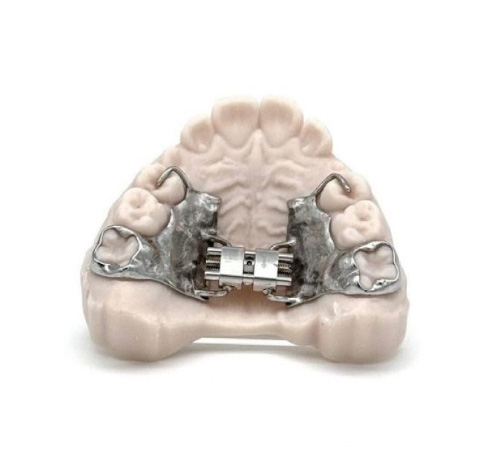

Rapid Palatal Expander
